Simplify onionoo architecture
Currently onionoo is a service comprised of 4 VMs: two backends with the onionoo java apps serving and updating the data, and two frontends.
At the time the service was launched this architecture made a lot of sense, but I think now we could simplify its maintenance by reducing it to a backend with a web server (like nginx) with some aggressive caching.
I was hoping that we would get sooner to the point where onionoo would be retired, but given the current pace of development of the metrics pipeline, I personally think it makes sense to reduce this service now so that it is easier to maintain for metrics and tpa.
What do you think?
Designs
Activity
mentioned in issue tpo/network-health/metrics/relay-search#40024 (closed)
i've been considering haproxy/varnish's retirement in favor of nginx in the past (#32462 (closed)), and this is the last place where we do use haproxy, so i'm all for retiring that part of the architecture, for sure. availbaility here i'm just not quite clear on the gain here: what burden would be reduced exactly? two less machines to maintain, in general? but then we have some work to do to replace haproxy... we'd also probably need to build one (or two?) machines from scratch as well, which is also ... well, work.
if it's less work for you, sure, makes sense. but for us, at this point, the benefits would be relatively marginal, especially if the plan is to retire the entire thing long term.
we would save disk space, that's for sure, so that's useful. but i kind of worry about availability here; right now this service is one of our sturdiest ones because we can take out any one machine in the cluster and the service still works (heck, we can take out half if we pick frontend/backend right). so i would love to keep that architecture, if that's a SLA you're still interested in.
how long can we afford to lose onionoo before things start to fall apart?
added Metrics Needs Information labels
assigned to @anarcat
marked this issue as related to #32462 (closed)
-
oh, i have just read tpo/network-health/metrics/relay-search#40024 (closed) where there is an inconsistency between the two backends, and removing one of the backends would clearly make debugging easier. so that's at least one good justification...
it's as you wish, really: if you don't need HA on this and can afford to live off a single VM, there's surely lots of tricks we can do with nginx, and we've got past experience setting it up as a cache, so it could replace the haproxy/varnish stack quite advantageously. if that's a word. :)
-
Absolutely: i have no idea why that was split up, other than maybe load balancing.
...
On 2024-02-01 16:32:02, Hiro (@hiro) wrote:
Yeah I often have issues w the two backends... Can we run the nginx on the same machine as the java app or you rather not?
The only reason to have two backends and two frontends was to split load, so if we can do that differently there is no need for this complicated setup.
Edited by Hiro-
Well, if we need to split the load and scale the machines, that will be hard if there's a single machine... have you looked on resource usage on those servers to see if a single box could handle it? what's the limiting factor here, memory? io? cpu?
...
On 2024-02-01 16:37:45, Hiro (@hiro) wrote:
The only reason to have two backends and two frontends was to split load, so if we can do that differently there is no need for this complicate setup.
-
if it's IO, then we could easily scale by moving to NVMe, i think. would need to analyze historical usage i guess.
...
On 2024-02-01 16:44:18, Hiro (@hiro) wrote:
Usually the load is I/O wait, but sometimes we have a situation where someone set up some web app that does a lot of requests.
-
okay, so i've taken a tour of grafana for the past year, and it's interesting!
here's the node exporter comparator, which isn't very detailed, but gives a rough overview:
looking at that, the boxes seem pretty idle. but those graphs are old and we have better stuff now. let's drill down.
here's memory:
there you can see that the hosts are comfortable with their current memory allocations, which is 16G for the backend, 4G for the frontend. we're probably need to add that up for a merged host, so something like 20G or even 32G might be good enough.
CPU usage is interesting:
iowait and cpu usage is actually pretty low in those graphs, but if we zoom in the last 24h:
we see a pattern emerge, which is that CPU usage is super spikey: every hour it maxes out a CPU in full, for 2-3 minutes. which is probably fine, but we shouldn't get rid of cores in the new setup.
finally, disk wise:
... we're about at 60GB used per backend, so we could probably get away with a small disk (128G?) for now.

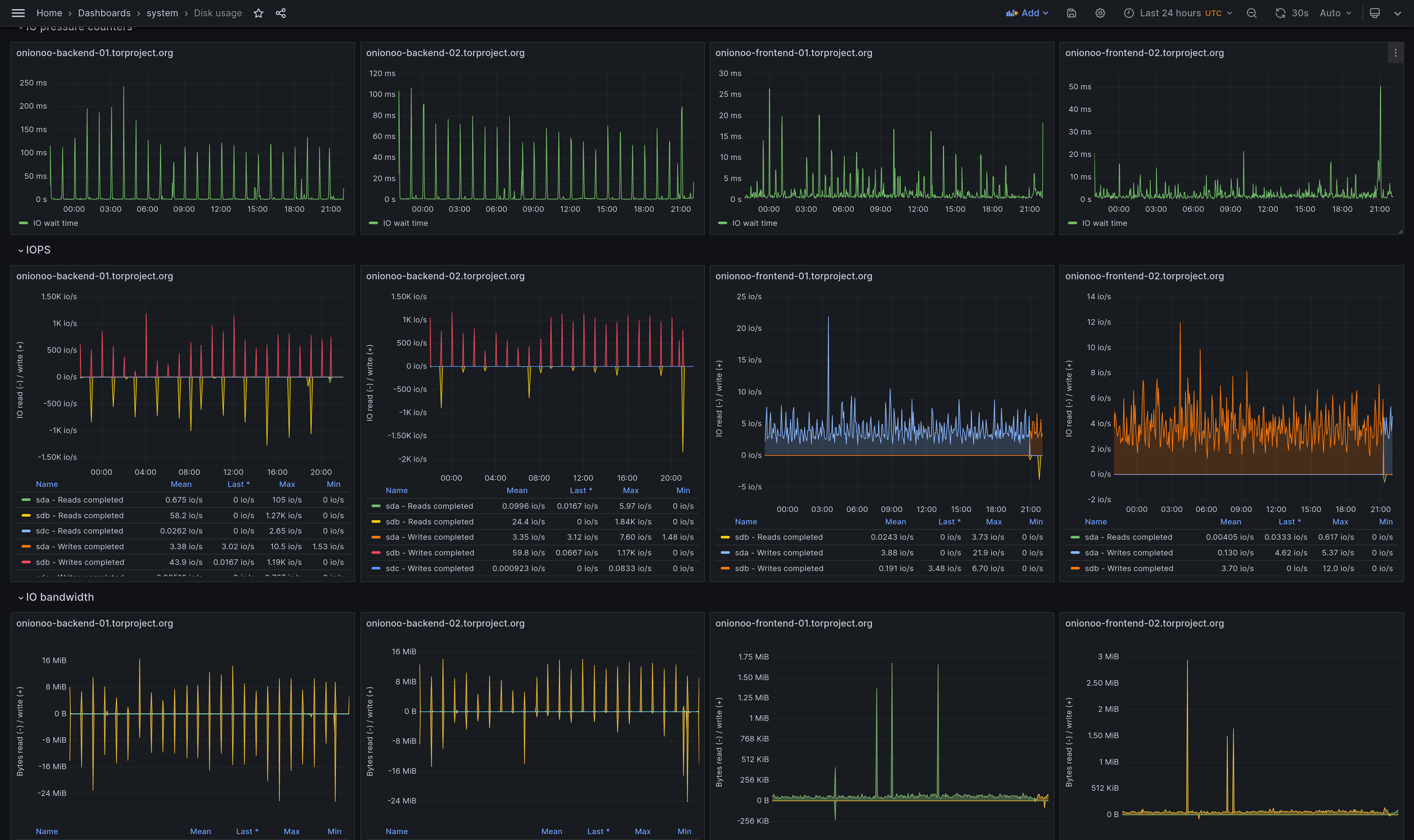

note that when we zoom in the last 24h, we see the same pattern as the CPU usage emerge:
we peak at about 1k IOPS / 16MiB/s which should be fine for NVMe.
in other words, hell yeah let's rebuild this in the new ganeti cluster and get rid of 4 machines! how about 128GB NVMe disk, 32GB RAM, and 8 cores? @lavamind, how does that sound?
For "simplifying debugging" I would not make such changes, but thats just me. I would rather find out what exactly is the issue with that backend box or this java application on it. Otherwise it looks bit like trying to change boxes to fix that unknown issue.
Java apps might have some monitoring interface available (rmi, jmx), to graph its internal resource usage. That has been helpful for me few times in the past, though I have no clue about java itself, just hosted few such thingies. As I recall, some of them needed reconfiguring, when some specific jvm config limit was exceeded, while machine itself had still plenty of everything available - jvm config just disallowed its usage for java app.
You can try with reconfiguring both current frontends to use only one of the backends. Should be enough to indicate if just one of them will be plenty. 1K iops sounds like nothing much.
This io-peaking is not too nice, if you ask me. Not as absolute values but trend as such. Maybe this application needs some changes so that peaking-read/write habit spreads around bit more. Otherwise it looks not much taxing load for those machines.
just my 2 cents
Edited by er-
@anarcat thanks so much for this. The only thing I wanted to mention about your analysis is that the two backends have/should have the same data, so about 100GB is fine IMO.
@er this issue started when we started having memory issues on collector because data from collector started being late.
Basically onionoo fetches network documents from collector, parses the data and writes tiny text files to disk which contains the nodes statuses (this is why we see i/o spikes).
Because the data from collector was late, the service assumed that your relay skipped a consensus, which made it reset the first seen date. You can check the code yourself: https://gitlab.torproject.org/tpo/network-health/metrics/onionoo/-/blob/master/src/main/java/org/torproject/metrics/onionoo/updater/NodeDetailsStatusUpdater.java#L282
Some of the assumptions that we have in onionoo code need some re-work and we are aware of it, that's why we are working on a different backend and API.
We are not just getting rid of one backend to fix this issue. Our plan is to first have 1 backend and allocate more resources to it, while also doing the load balancing with nginx. Then we need to look at the bandwidth history data and see if we can reset the first_seen field from there.
/cc @gk
added Needs Review label and removed Needs Information label
-
that all sounds good to me! what's the next step here? @hiro do you want us to make a VM and let you loose in there? i could probably make up some Puppet blobs to setup nginx and friends and then you could do the rest...
-
@anarcat, yes that would be ideal, if you set me up with the nginx with the loadbalancing and caching loaded I can do the rest.
This issue has been waiting for information two weeks or more. It needs attention. Please take care of this before the end of 2024-03-14. ~"Needs Information" tickets will be moved to the Icebox after that point.
(Any ticket left in Needs Review, Needs Information, Next, or Doing without activity for 14 days gets such notifications. Make a comment describing the current state of this ticket and remove the Stale label to fix this.)
To make the bot ignore this ticket, add the bot-ignore label.
added Stale label
-
actually, this is not Needs Review, @hiro approved this. next step is to make a VM: "128GB NVMe disk, 32GB RAM, and 8 cores"
added Next label and removed Needs Review label
removed Stale label
-
basic server install has been done, hostname is onionoo-backend-03.torproject.org. there's a caching nginx proxy setup as well, which forwards traffic to localhost:8080, let me know if you need anything else. entry point in puppet is
role::onionoo_backend(not to be confused withroles::onionoo_backend) and most code should live inprofile::onionoo_backend. added Needs Review label and removed Doing label
-
@hiro did you see the above message? anything else you need here? (when) should we start looking at retiring the old onionoo servers?
-
This issue has been waiting for information two weeks or more. It needs attention. Please take care of this before the end of 2024-04-24. ~"Needs Information" tickets will be moved to the Icebox after that point.
(Any ticket left in Needs Review, Needs Information, Next, or Doing without activity for 14 days gets such notifications. Make a comment describing the current state of this ticket and remove the Stale label to fix this.)
To make the bot ignore this ticket, add the bot-ignore label.
added Stale label
added Backlog label and removed Needs Review Stale labels
removed Backlog label
added Doing label
-
I have the new onionoo backend working at https://onionoo-backend-03.torproject.org/. I will monitor it for a few days and if everything is ok we can switch onionoo.tpo to this backend only and retire everything else.
unassigned @hiro
added Backlog label
removed Doing label
assigned to @anarcat
-
this is going to be a tad more complicated than i thought: onionoo.tpo is in the "auto-dns" setup, so we'll need to either twist that in a "single node" auto-dns setup (which i'm not even sure works), or try to simplify this and retire the auto-dns part of this in favor of a simple CNAME.
i don't think i've ever done either.
@hiro what do you think? should we keep the capacity to have automatic failovers for this, in case we build a second backend?
-
so here's a migration plan:
- today: add onionoo-backend-03 to the rotation
- tomorrow: remove onionoo-backend-01 from the rotation
- wednesday: remove onionoo-backend-02 from the rotation
- next week: retire old onion-backend
@hiro does that work?
-
@hiro i'm still unsure: the rotation hosts are currently onionoo-frontend-01 and -02 (not onionoo-backend-01 and -02), are we sure we want to just replace that with onionoo-backend-03? (in which case i have to wonder why we still call this host a "backend". :))
this is the commit i have pending:
master c494505c9f647d2bc3266868197d53e05ea53998 Author: Antoine Beaupré <anarcat@debian.org> Date: Tue Oct 22 12:42:41 2024 -0400 Parent: 6677c39 retire web-bhs-* servers (tpo/tpa/team#41111) Merged: master Contained: master add onionoo-backend-03 to the onionoo.torproject.org rotation This is a bit counter-intuitive, but onionoo-backend-03 does both frontend and backend. See: tpo/tpa/team#41512 2 files changed, 5 insertions(+) hosts.yaml | 4 ++++ services/onionoo.torproject.org.service | 1 + modified hosts.yaml @@ -31,5 +31,9 @@ hosts: 4: 49.12.57.137 6: 2a01:4f8:fff0:4f:266:37ff:fe33:259b checks: ['ping-check', 'shutdown-check', 'http-check'] + onionoo-backend-03.torproject.org: + 4: 204.8.99.156 + 6: 2620:7:6002:0:466:39ff:fe3c:7686 + checks: ['ping-check', 'shutdown-check', 'http-check'] # vim:set shiftwidth=2: modified services/onionoo.torproject.org.service @@ -4,4 +4,5 @@ hosts: default: - onionoo-frontend-01.torproject.org - onionoo-frontend-02.torproject.org + - onionoo-backend-03.torproject.org # vim:syn=yaml:Edited by anarcat -
@hiro after confirmation from IRC, i pushed the above change and onionoo-backend-03 is now in rotation, let me know if everything looks okay from your end, and later today (or tomorrow) i'll remove one of the other backends to see if the new host can take the increased load.
we should start seeing impact on the server here:
Edited by anarcat added Needs Review label and removed Doing label
added Doing label and removed Needs Review label
added Needs Review label and removed Doing label
Are you sure the cert is really fixed? I am getting intermittent errors pulling from onionoo, and folks on #tor-relays are reporting it too.
<bauruine[m]> * Server certificate: <bauruine[m]> * subject: CN=onionoo-backend-03.torproject.org <bauruine[m]> * subjectAltName does not match onionoo.torproject.org <bauruine[m]> The other two A records (hosted at hetzner) work.
